ERA Hi-Fi
PHOTOS WILL BE ADDED
Specification
Belt drive;
33⅓ and 45 rpm;
automatic tonearm return and speed adjustment.
* Note
* lid attachment hinges are missing
Specification
2-Speed Belt Driven 33 & 45 rpm
Low mass, low resonance straight Tonearm; T4P-System
System Trio Kenwood V 68 (MM)
Platter 296mm, 0,35kg
Dust Cover
Power Consumption
120VAC 60Hz Version - 3,5 Watts
* Note
Belt Drive Turntable
+5 more
Specification
Sony linear BSL direct-drive motor;
Platter: 313mm aluminium alloy diecast
Speeds: 33 and 45rpm
Wow and flutter: 0.05% wrms
Signal to noise ratio: 70dB
Tonearm: statically balanced, universal
Effective length: 216.5mm
Overhang: 16.5mm
Automatic system: lead-in, return, reject, repeat
* Note
Direct-Drive Turntable

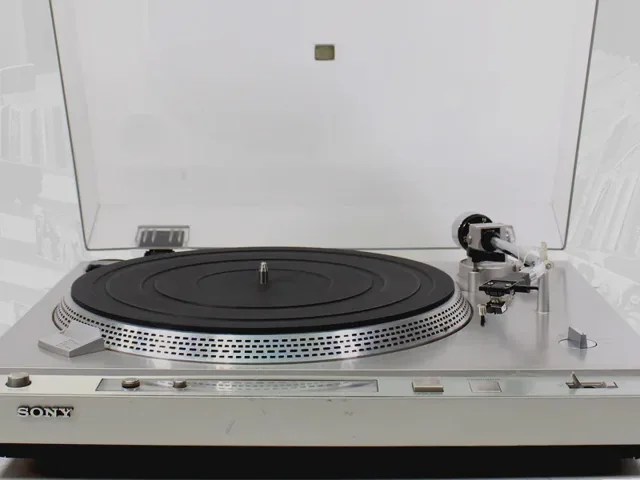

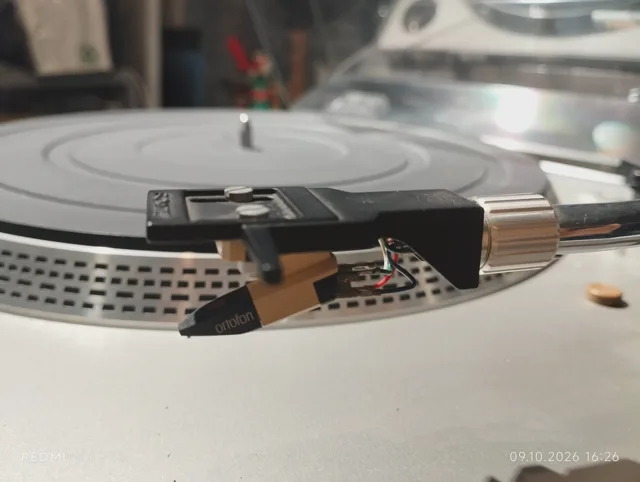

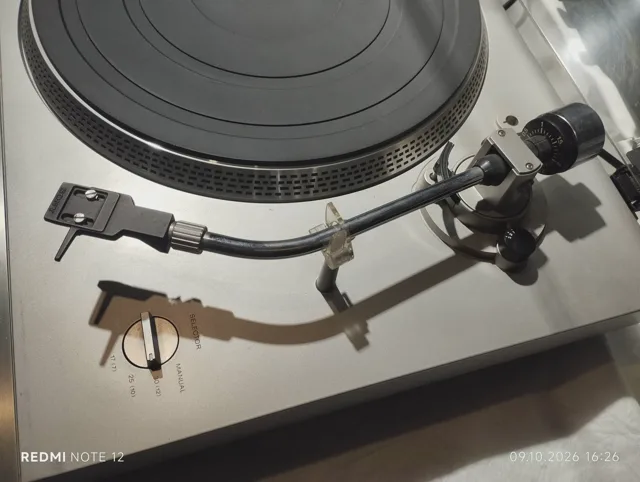

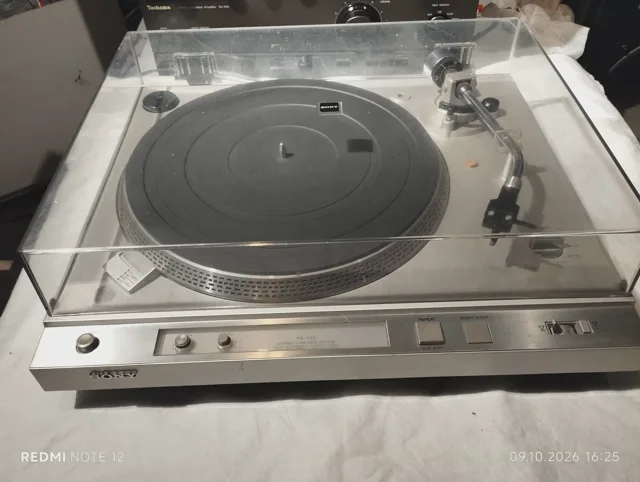

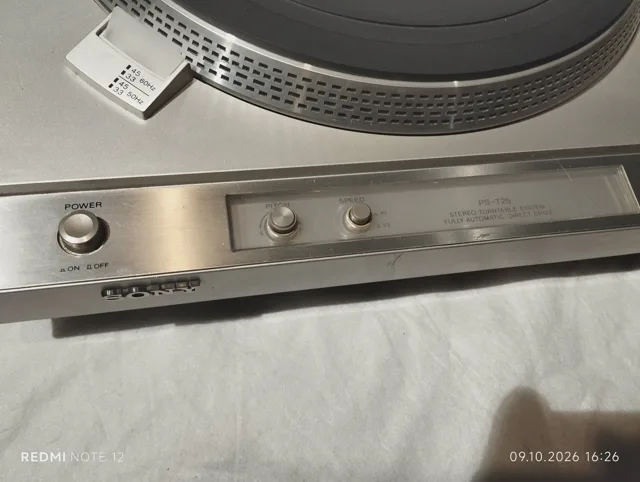

he Sony PS-T25 is an automatic turntable with lead-in, return, reject and repeat functions activated by pushing the Start/Stop and Repeat buttons.
The unit has a high precision speed monitoring system, utilizing 5-pole magnetic pick-up head and pulse coated platter rim for electronic speed sensing.
The direct drive system uses Sony's unique brushless and slotless motor, resulting in extremely smooth torque and start up characteristics.
+4 more
Specification
33⅓ and 45 rpm;
fully automatic play and return;
pitch adjustment.
* Note
Direct-Drive Turntable
Specification
direct drive;
33⅓ and 45 rpm;
automatic tonearm return and speed adjustment.
* Note
Direct-Drive Auto-Return Turntable, MicroSeiki - mehanic Tonearm Similar to Linn LV-V
+2 more
Specification
Type: fully automatic turntable
Platter: 312mm aluminium alloy
Speeds: 33 and 45rpm
Motor: DC servo control
Wow and flutter: 0.045% WRMS
Rumble: -70dB
Tonearm: static balance, straight tonearm with plug-in connector
Effective length: 230mm
Overhang: 15mm
Stylus pressure: 1.25g (fixed)
Cartridge: moving magnet
Replacement stylus: EPS-24CS
* Note
DC Servo
+4 more
Specification
Motor: FG servo DC coreless
Platter: 300mm, 1.0kg diecast aluminium
Speeds: 33 and 45rpm
Signal to noise ratio: 78dB
Wow and flutter: 0.025% wrms
Tonearm: straight tubular
Effective length: 222mm
Overhang: 16mm
Offset angle: 23 degrees
Effective mass: 11g
* Note
Direct Drive Turntable
* Note
*Entry-level player

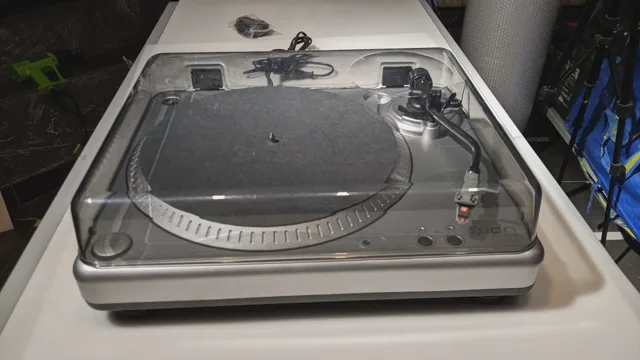

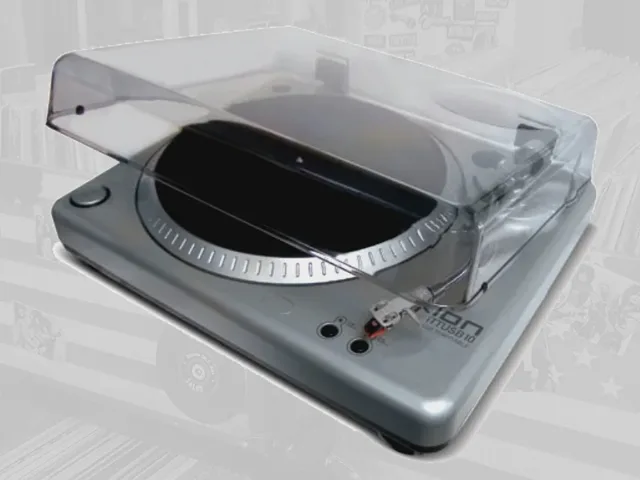

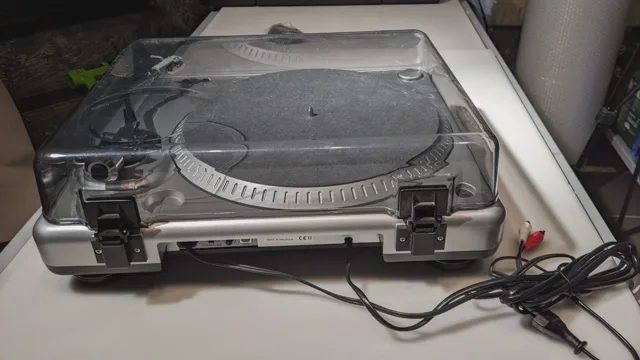

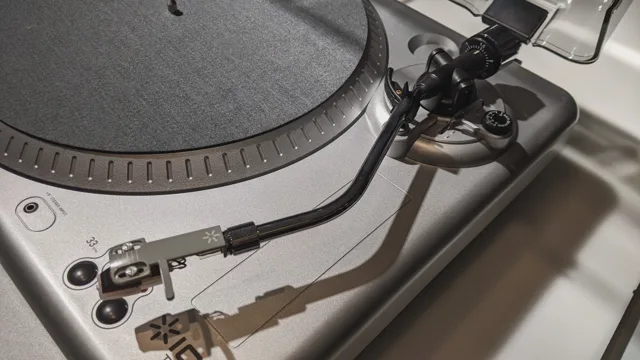

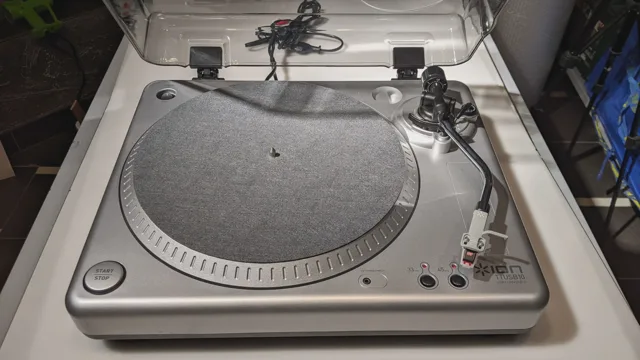

The Ion TTUSB10 is a USB turntable compatible with Mac and PC; it features an attractive design and excellent performance. The TTUSB10 is equipped with a switchable RCA output (phono/line level) and an auxiliary input for recording audio signals from external sources.
Specification
Speeds 33⅓ and 45 RPM
Motor Asynchronous motor with network frequency stabilization
Platter Cast aluminum
Tonearm S-shaped tonearm
no plastic, only metal The body is made of multi-layer plywood covered with vinyl film.
Drive system Belt drive
new Shell/Cartridge AT-3600 type MM
* Note
Belt-Drive Turntable

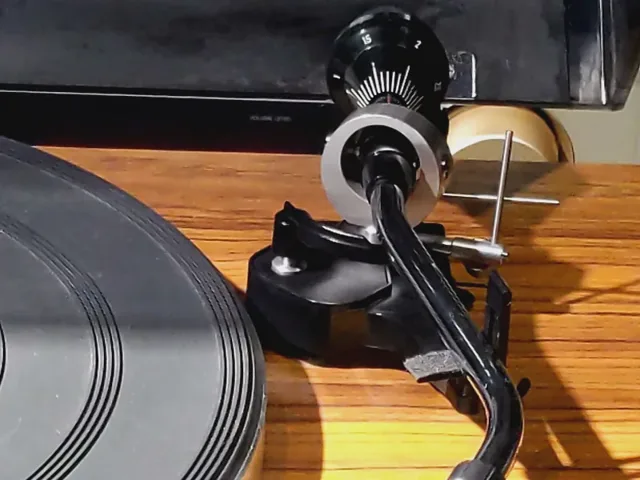

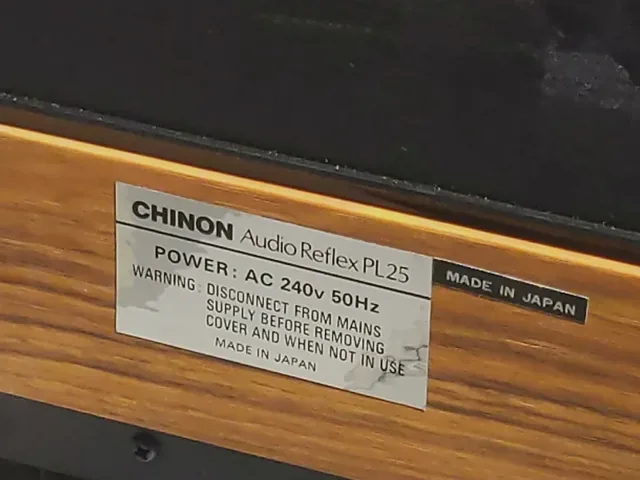

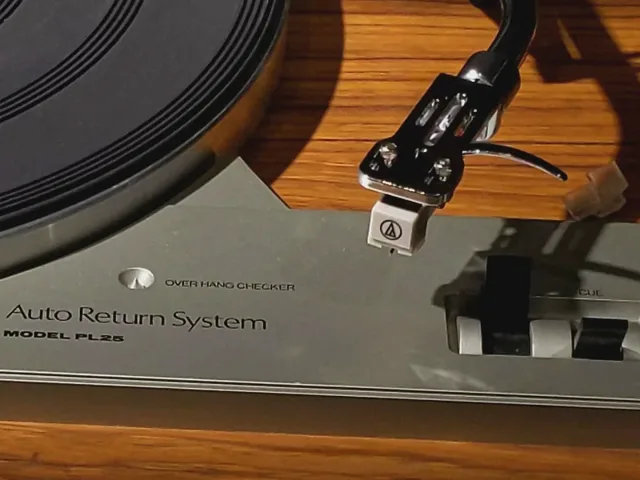

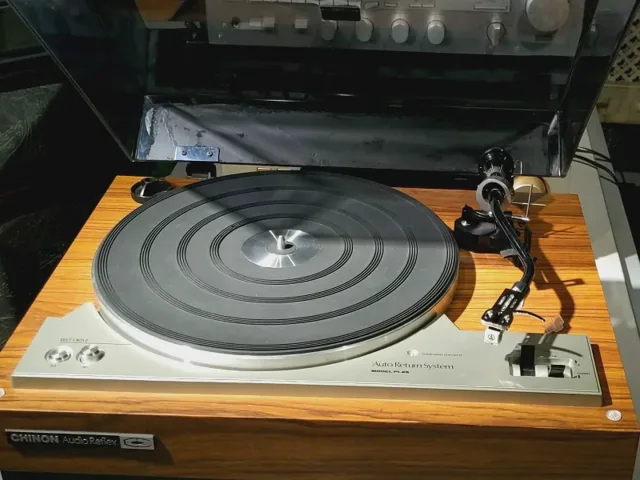

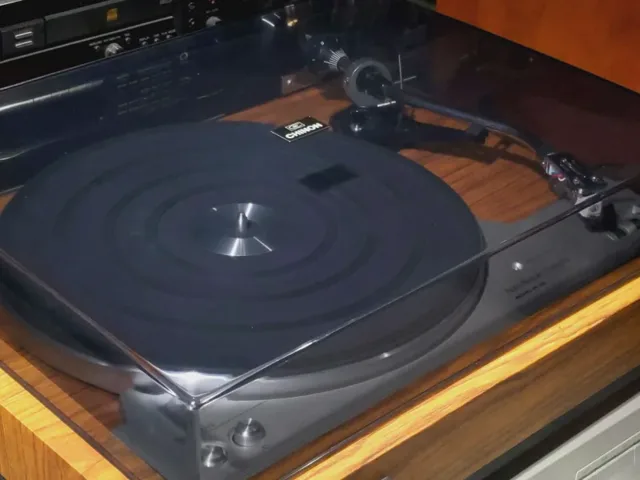

The CHINON Audio Reflex PL-25 is a vintage Japanese belt-drive turntable from the early 1970s, believed to be based on an OEM chassis similar to the Pioneer PL-12D series.
Specification
Drive method: belt drive
Playback speeds: 33.33, 45 and 78rpm
Motor type: DC brushless
* Note

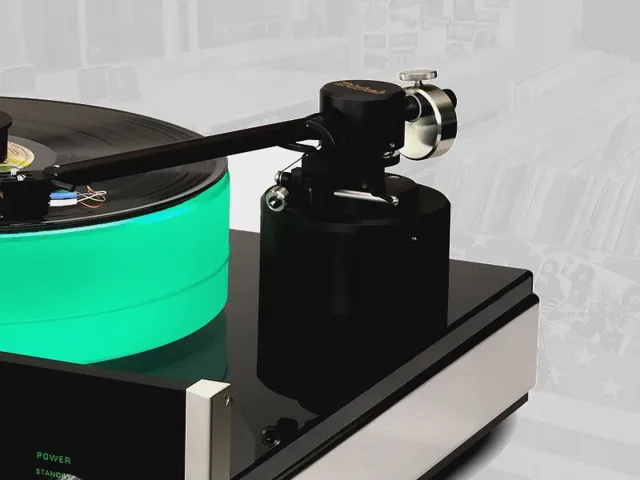

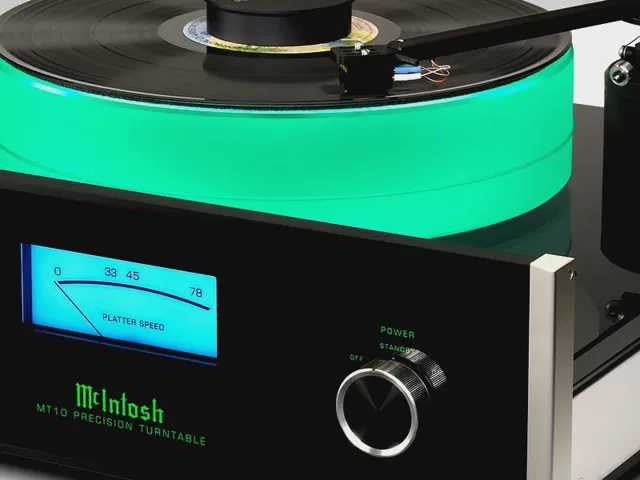

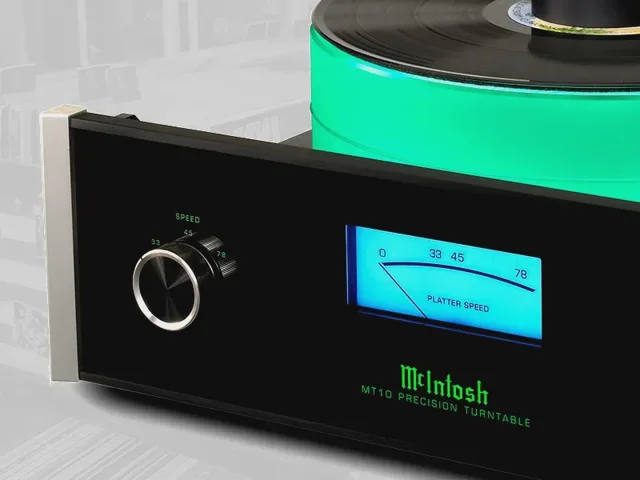

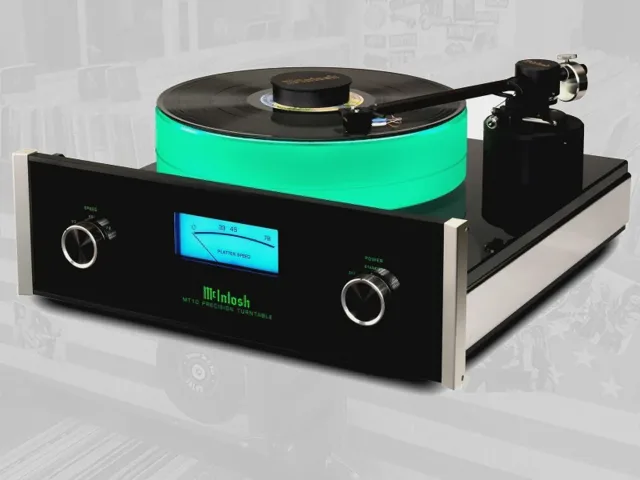

The McIntosh MT10 precision turntable and MCC10 moving coil cartridge rank amongst the best in the world.
The unit combines the latest technology in phono cartridges, tone arms, mechanical suspensions and record platter rotation for superb performance and accurate operation.
Specification
Speeds (rpm) 33.3, 45
Drive method: belt drive
Motor: electronic controlled DC motor
Tonearm: straight, tubular arm
Effective length: 211mm
* Note
2-speed Belt Drive Auto Return Turntable
Specification
Drive method: belt drive
Speeds: 33 and 45rpm
Pitch control: +-3%
Wow and flutter: 0.05%
Rumble: 70dB
Mechanical noise: 33dB
Tracking force: 0.5 to 3g
Speed control: electronic
* Note
2-Speed Electronic Hi-Fi Record Player.

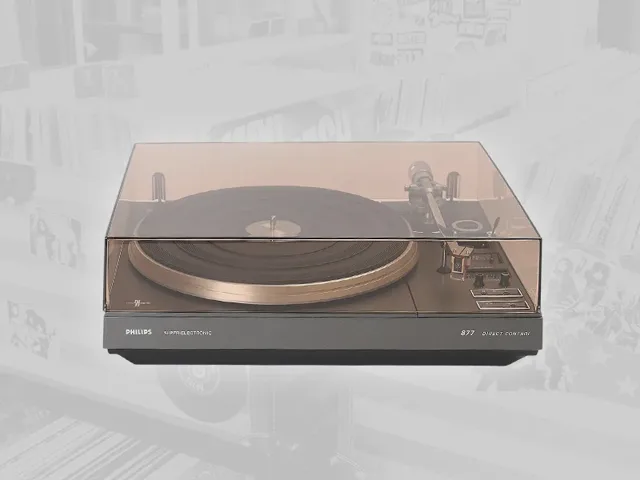

The Philips AF877 is an AF087 turntable system with a factory fitted baseboard and lid included.
Specification
Type: quartz direct drive
Motor: brushless dc motor
Platter: 312mm aluminium die-cast
Speeds: 33 and 45rpm
Wow and flutter: 0.024% wrms
Tonearm: static balanced straight tonearm with plug in cartridge system
Effective length: 230mm
Overhang: 15mm
Effective mass: 7.5g
Cartridge weight: 6g
* Note
Direct Drive Turntable
* There is a chip on the lid; it does not affect functionality.
Specification
Motor: EDS 501 quartz controlled direct drive system
Speeds: 33.33 and 45rpm
Platter: 1.45kg, 304mm
Pitch control: 11%
Wow and flutter: <0.025% WRMS
Rumble: 78dB
Tonearm: ultra low mass
Tonearm effective length: 221mm
* Note
Quartz Controlled Direct-Drive Turntable

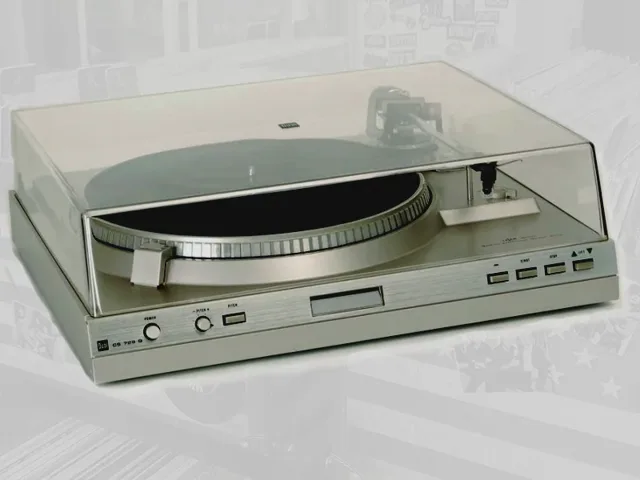

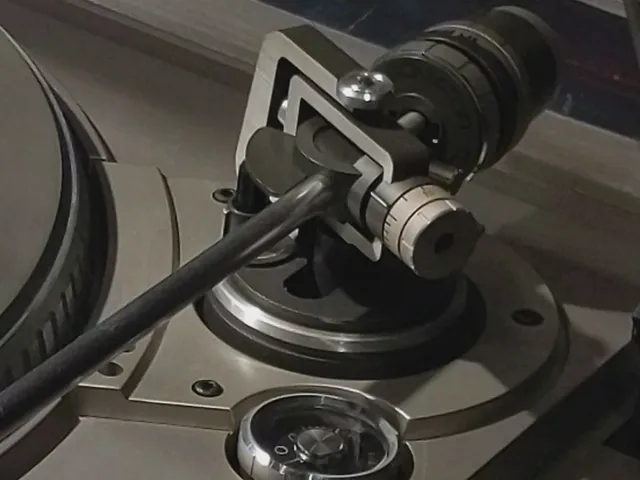

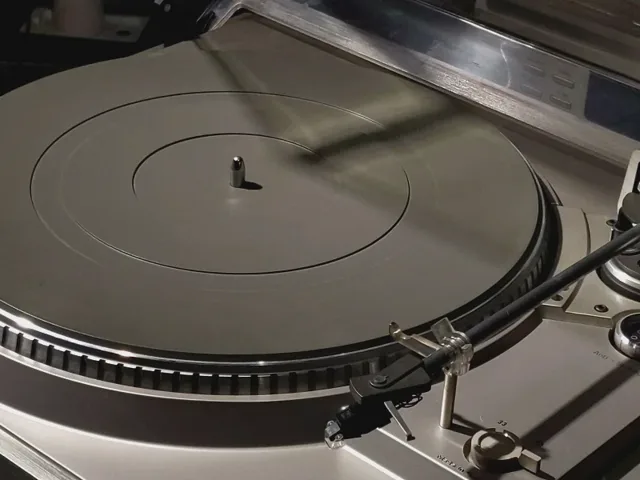

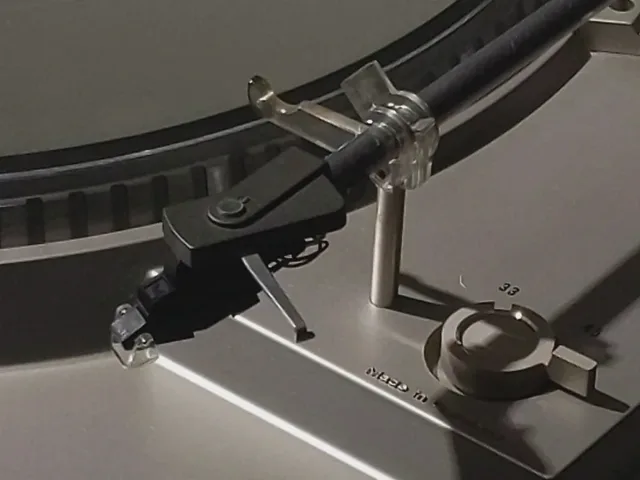

The CS 728Q is a 2-Speed, quartz stabilised electronic controlled direct-drive turntable with pitch control and ultra low mass tonearm
Specification
Auto Return Direct Drive DC-Servo System
2-Speed Turntable (33 & 45 rpm)
* Note
Auto Return Direct Drive DC-Servo System

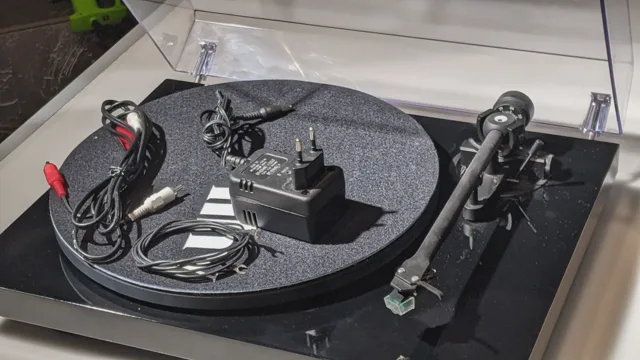

Specification
Nominal speeds 33 1/3 or 45 rpm
Speed variance +/- 0.8%
Wow and flutter +/- 0.12%
<-65 dB
Downforce range 1.0 to 3.0g (10 – 30mN)
Platter Balanced weighted acrylic with rubberised paint covering
Anti-skate mechanism Magnetic, non-contact
Outboard power supply 16V AC 500mA
2 Watts
* Note
2-speed belt drive turntable, Gold plated RCA stereo outputs and ground connection
Specification
Platter: 312mm aluminium alloy
Speeds: 33 and 45rpm
Motor: frequency generator, servo control
Wow and flutter: 0.045% WRMS
Rumble: -70dB
Tonearm: static balance, straight tonearm with plug-in connector
Effective length: 230mm
Overhang: 15mm
Stylus pressure: 1.25g (fixed)
Cartridge: moving magnet
* Note
2-Speed Belt-Drive Turntable
+7 more
Specification
Motor: DC servo motor
Platter: 300mm, 0.7kg diecast aluminium
Speeds: 33 and 45rpm
Signal to noise ratio: better than 70dB
Wow and flutter: less than 0.04% wrms
Tonearm: straight type, tubular
Effective length: 222mm
Overhang: 16mm
Tracking force range: 0 to 3g
Effective mass: 11g (without cartridge)
Offset angle: 23 degrees
Arm lifter: oil damped system
Cartridge weight range: 2.5 to 10g
* Note
Belt-Drive
Specification
Drive method: belt drive
Motor: AC Synchronous
Speeds: 33.33 and 45rpm
Wow and flutter: 0.06%
Rumble: -70dB
* Note
2-Speed semi-automatic integrated turntable
Specification
Motor: 120 pole linear
Drive system: direct
Wow and flutter: 0.035% WRMS
Rumble: -70dB
Speed variation: +-3%
Tracking force: 2g
Platter: 314mm
Platter weight: 1.0kg
Speeds: 33 and 45rpm
Tonearm: S-form
Effective length: 222mm
* Note
2-Speed Linear Motor Direct-Drive Turntable
The MT-6330 is a highly sophisticated turntable developed by Fisher to give many years of listening enjoyment.
The deck features Linear Drive, a novel engineering approach to the difficult task of rotating a turntable accurately and without undesirable drift is featured in this unit.
This drive employs 120 magnetic poles instead of the usual 4 to 24.
This achieves a completely uniform rotation and virtually eliminates wow and flutter as well as rumble.
*A new AT-3600 cartridge is installed. Small crack on the lid.
*There is a small crack on the lid.
Specification
Drive method: one step belt drive
Motor: low voltage, 24-pole synchronous motor
Speeds: 33 and 45rpm
Speed control: 2 phase generator
Platter: 1.2kg, 300mm, zinc alloy, dynamically balanced
Wow and flutter: 0.045%
Rumble: -70dB
Tonearm effective length: 232mm
Effective mass: 12.5g
Overhang: 16.4mm Offset angle: 23 degrees

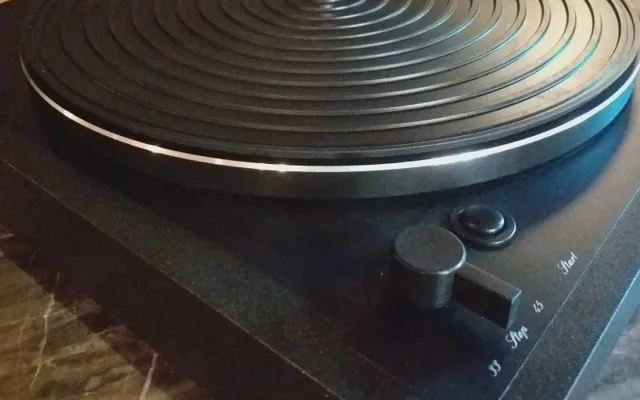

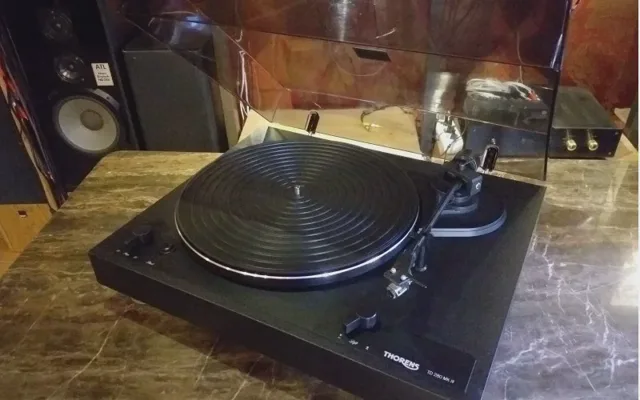

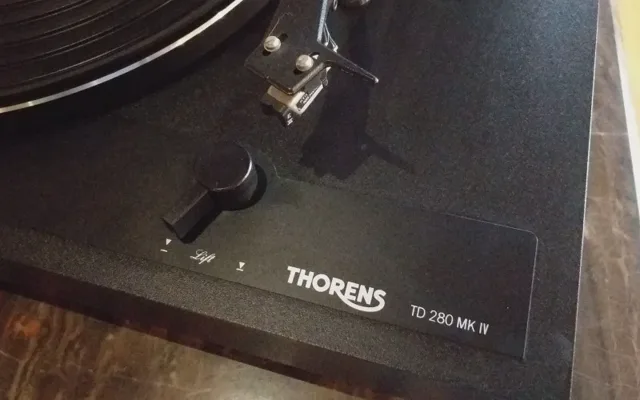

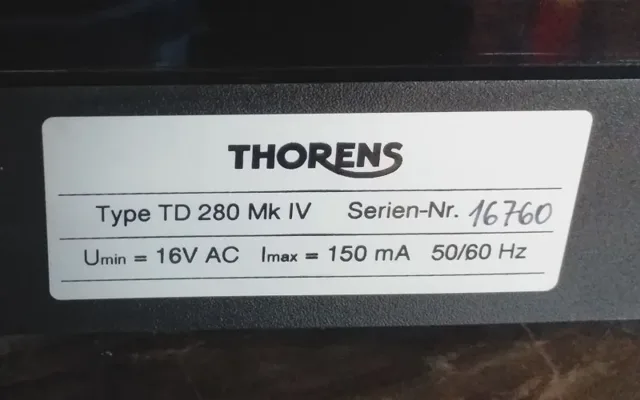

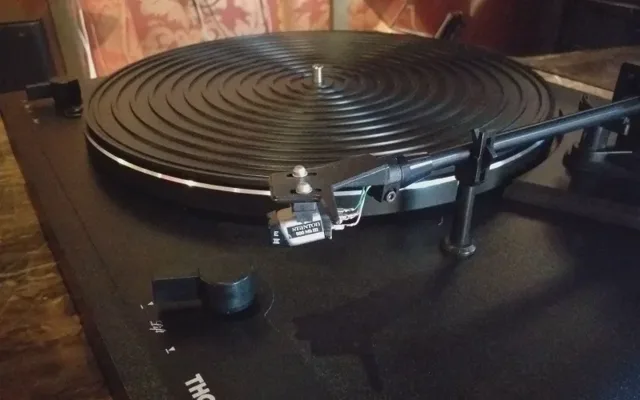

Vinyl turntable. TD 280 Mk IV label specifies 16 V AC, 150 mA, 50/60 Hz. 33/45 speed selection, start and lift controls visible.
* Note
2-Speed Belt-Drive Turntable. The Thorens TD-280 is a high performance turntable for the audiophile on a budget. The two speed turntable with the TP-28 tonearm offers excellent isolation from vibrations and is capable of retrieving analogue signals with great accuracy.
