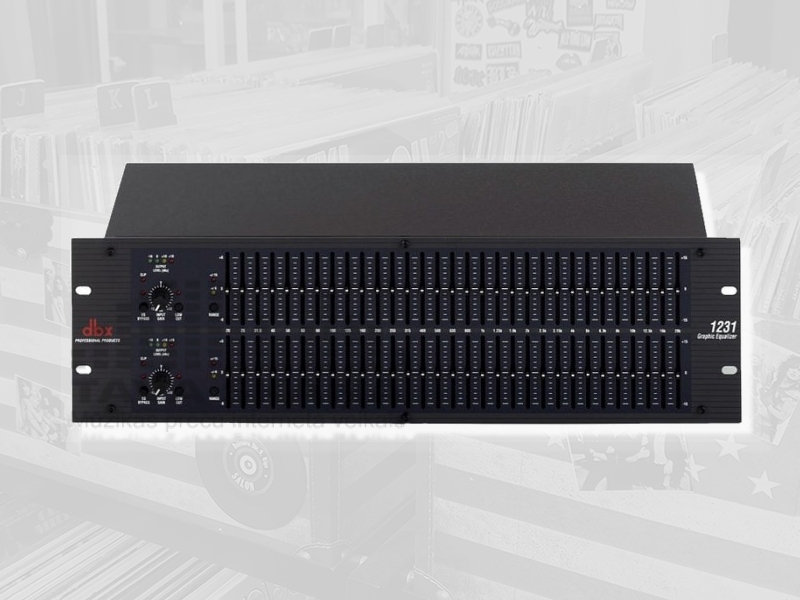

DBX 1231
Dual Channel 31-Band Equalizer PRO
Specifications
| €185 | ||
| Switchable boost/cut ranges of ±6 or ±15 dB | ||
| Electronically balanced/unbalanced inputs | ||
| Servo balanced/unbalanced outputs | ||
| RF filtered inputs and outputs | ||
| XLR, Barrier Strip, and 1/4" TRS connectors | ||
| -12dB/+12dB input gain range | ||
| 18dB/octave 40Hz Bessel low-cut filter | ||
| Chassis/signal ground lift capability | ||
| Internal power supply transformer | ||
| Power-off hardwire relay bypass with 2-second power-up delay | ||
| The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier. | ||
