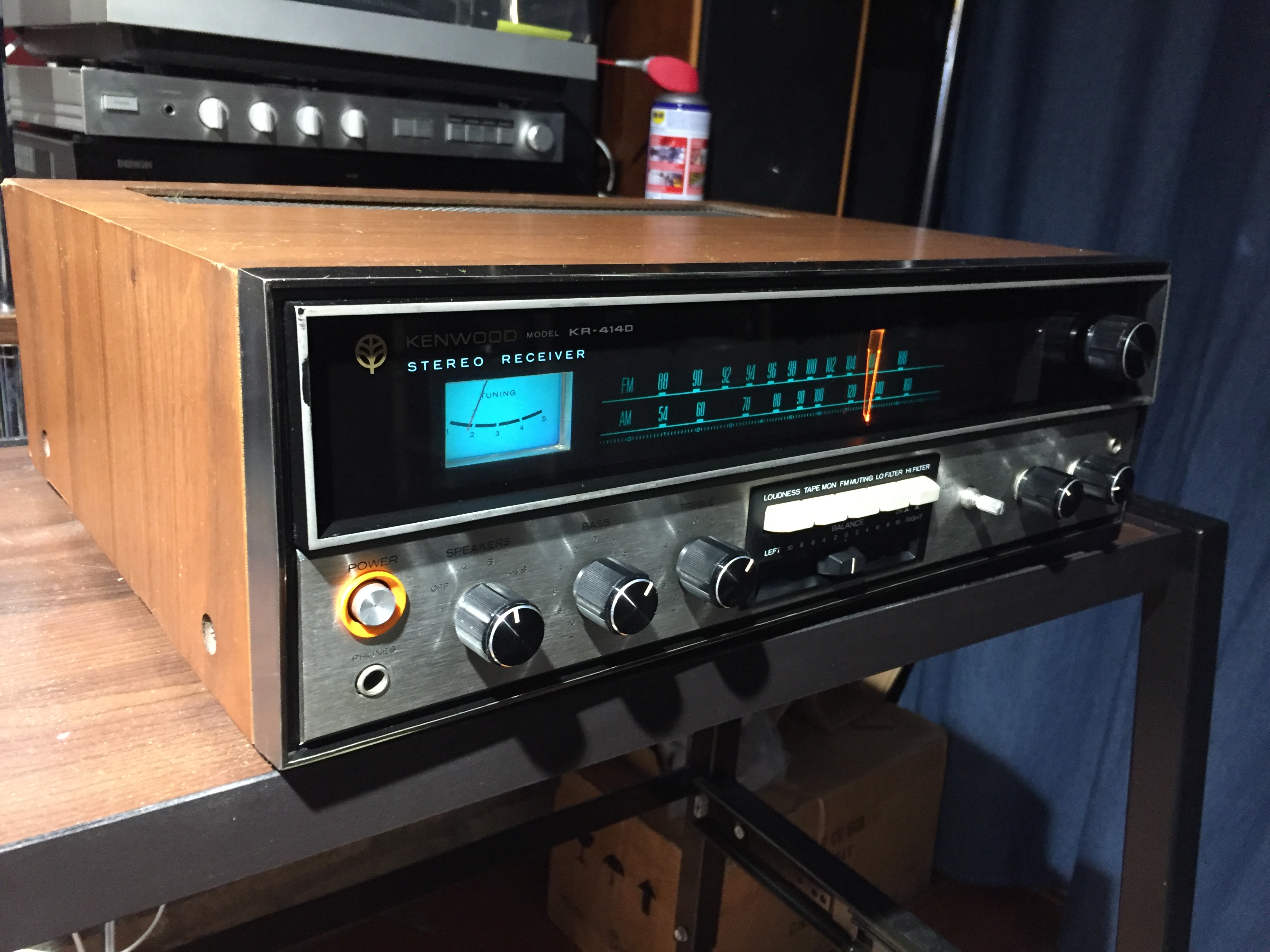

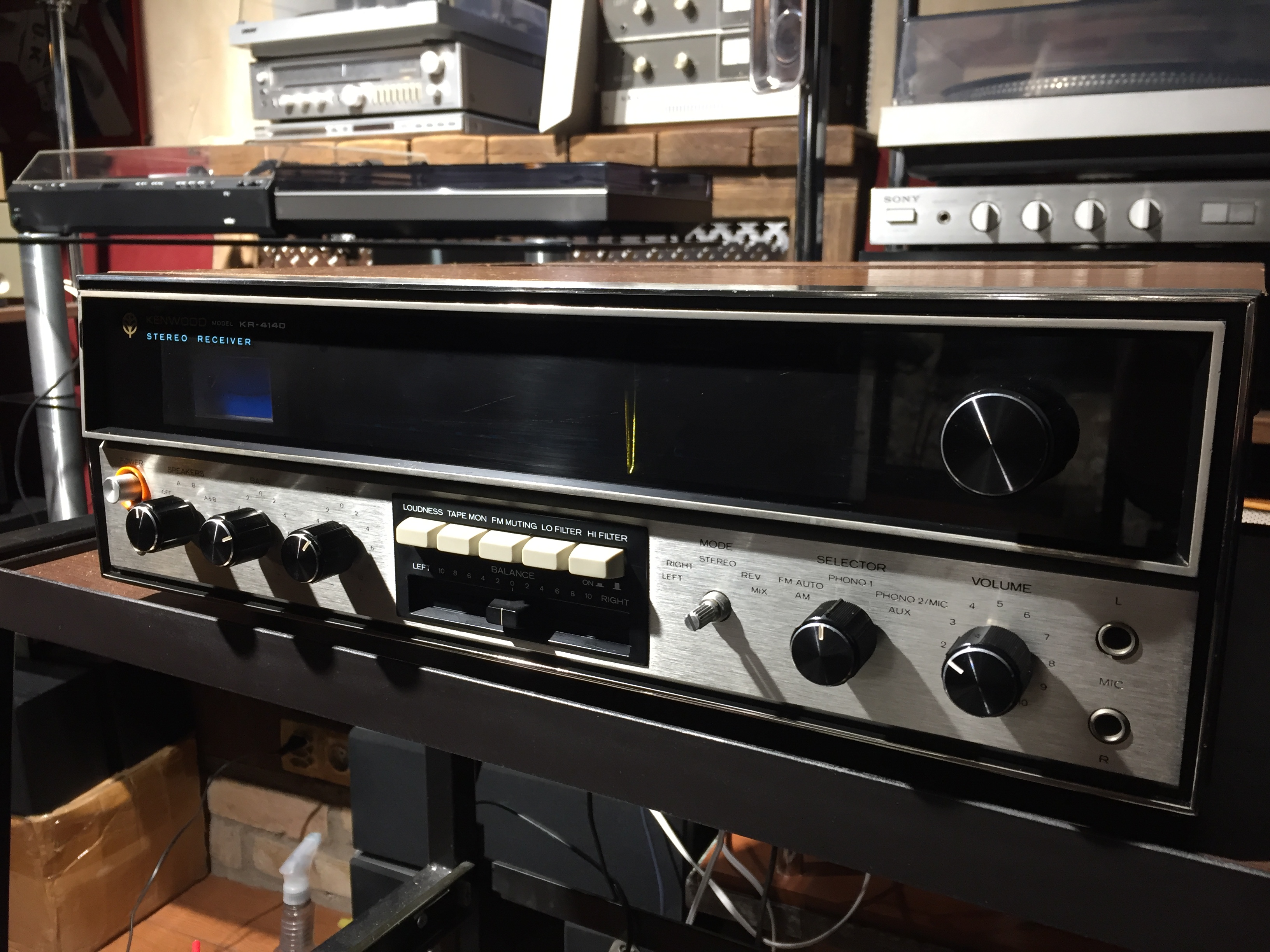

Kenwood KR-4140 Solid State Stereo AM FM Receiver (1970)

Specifications Tuning range: FM, MW Power output: 18 watts per channel into 8Ω (stereo) Frequency response: 20Hz to 40kHz Total harmonic distortion: 0.08% Damping factor: 50 Input sensitivity: 1.8mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line) Signal to noise ratio: 58dB (mic), 65dB (MM), 75dB (DIN), 75dB (line) Output: 150mV (line), 30mV (DIN) Speaker load impedance: 4Ω to 16Ω Semiconductors: 2 x IC, 2 x FET, 36 x transistors, 33 x diodes Dimensions: 16-3/4 x 5-1/2 x 12-3/8 inches Weight: 23lbs Accessories: optional SR-66 walnut cabinet Year: 1970
