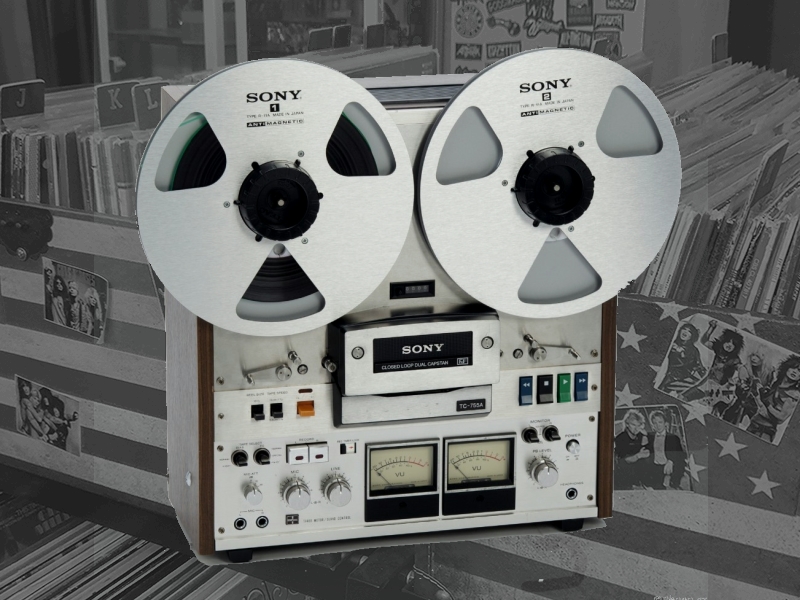

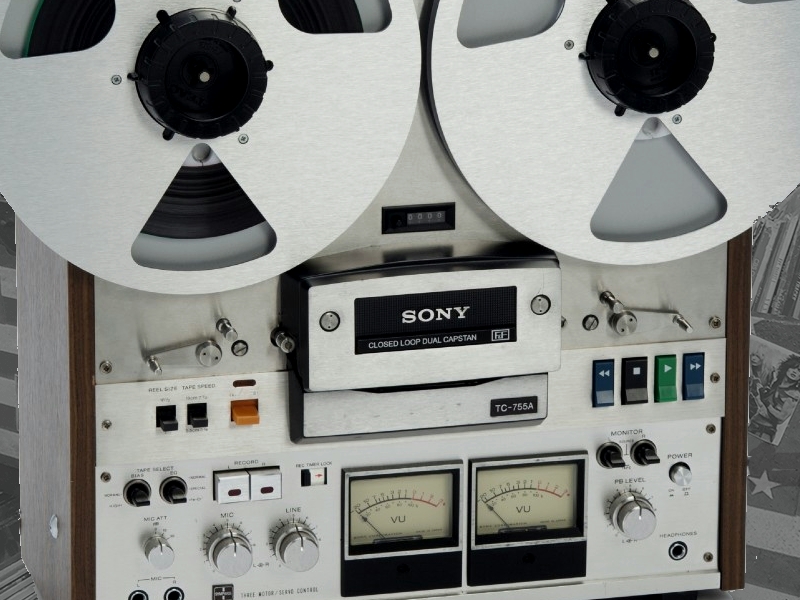

SONY TC-755
Three Head Tape Recorder (1972-74)
Specifications
| 850€ | ||
| Track system: 4-track, 2-channel, stereo/monaural system | ||
| Heads: 1 x record, 1 x playback, 1 x erase | ||
| Motor: 2 x reel, 1 x capstan | ||
| Reel size: up to 10.5 inch reel | ||
| Tape speeds: 3 3⁄4 7 1⁄2 ips | ||
| Wow and flutter: 0.05% (7 1⁄2 ips) | ||
| Frequency response: 20Hz to 30kHz (7 1⁄2 ips) | ||
| Signal to Noise Ratio: 56dB | ||
| Total harmonic distortion: 1.2% | ||
| Input: 60mV (line), 0.2mV (mic) | ||
| Output: 0.43V (line) | ||
| Semiconductors: 2 x FET, 56 x transistors, 1 x IC, 41 x diodes | ||
| Dimensions: 435 x 451 x 221mm | ||
| Weight: 24kg | ||
| Special features of the Sony TC-755 include an AC servo controlled capstan drive motor, dual capstan closed-loop tape drive, three motors, three heads, 10.5" reel capacity, logic controlled function buttons and tape equalisation and bias selectors. |
